Yo no veo esa web. Te lo tienen que decir lo que si la ven que dice que tienen dos turbos, por lo visto los nuevos con AdBlue. Los B47C20O1 @Gulf627 ilumina a @Bimmer porque yo sigo leyendo en la web de BMW lo de TwinScroll. Pero también pusieron mucho tiempo que los motores 20d llevaba depósito ampliado en el f48 P.D. en el subforo del f48 hay mas gente que ha hecho referencia a km77 y los dos turbos. Pero no me acuerdo de los nick's para que nos iluminen.
Por lo visto en una web americana tienen las especificaciones de la versión europea del M2 Competition. Que no deja de ser curioso Pero vamos, que a ciencia cierta nadie parece saber nada. Así muy resumido.
Creo que os estais confundiendo todos. La tecnologia twin scroll turbo no quiere decir que tenga dos turbos, es por un tema de vanos variables Almenos los twin power turbo
Para mi es mas prescindible en carretera que en circuito. Yo para circuito prefiero acero que cambiarlos son 4 duros
Yo es lo que creo, pero parece ser que en la web km77 hace referencia a dos turbos en paralelo en los "nuevos" B47. para cumplir con emisiones meten AdBlue y dos turbos en cascada en los 18d y, por ende, en los 20d parece ser. Raro, raro pero cosas peores se habrán visto. Para mi siguen siendo "monoturbo", por lo menos eso sigue reflejando la web de BMW. Pero KM77 parece ser que dice "dos turbos en cascada". Lo dice mas de una persona, a ver si Gulf nos ilumina con el párrafo porque me parece muy curioso que le metan urico y dos turbos para cumplir normativas..... Y ahora le llaman TwinPower turbo creo. Pero sigue siendo mas o menos lo mismo de antes. Geometría variable, no?
Esto es lo que dice KM77: El bloque de cilindros es de aluminio y está refrigerado mediantes unos conductos tipo «closed deck». Los motores de tres y cuatro cilindros tienen un árbol de equilibrado para reducir las vibraciones. Todos están turboalimentados mediante la tecnología que BMW denomina «TwinPower Turbo». Esta tecnología consiste, en el caso de los motores de gasolina, en el uso de un turbocompresor de doble entrada (Twin Scroll), inyección directa (el nombre comercial de BMW es High Precision Injection) y un sistema de distribución variable «doble-VANOS», que modifica el momento de apertura de las válvulas, tanto en admisión como en escape, en función del régimen del motor. Para los motores Diesel la tecnología «TwinPower Turbo» significa el uso de un turbocompresor de geometría variable y un sistema de inyección directa con capacidad para llegar hasta los 2000 bar de presión de inyección.
Mira el mensaje de @Gulf627 Pues eso me lo han dicho en el subforo del f48 varias veces. Y yo siempre he respondido lo mismo, para mi que siguen siendo de un solo turbo, que es lo que dice la web de BMW. El único con dos turbos era el 25d. Pero no se de donde sacan lo de km77 y los dos turbos en los f48, ojo.
Entonces no saques conclusiones y las comentes en el foro sobre que no es fiable km77, si los datos no los has comprobado por ti mismo. Y si, por el contrario, hay fallos en km77, tienen un e-mail para remitirles correcciones. O me lo dices a mí y lo edito en cinco minutos.
No obstante, voy a seguir buscando posibles textos que puedan contener ese error en KM77, @Trackball para corregir cualquier posible equivocación. Saludos.
Te doy toda la razón. sin mas ni mas. Doy por buenos los comentarios que hace la gente, pero yo no lo he visto en ningún lado.

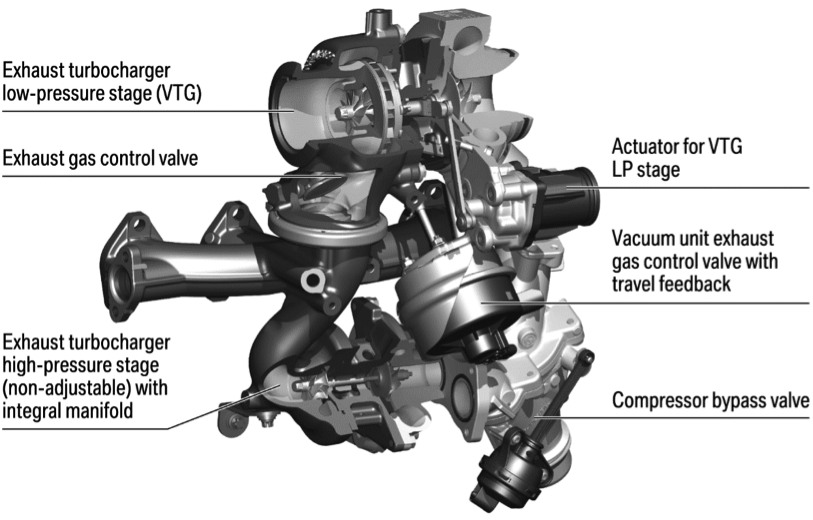

A finales del anio pasado se presentaron los B47TÜ1 llevan un turbo en cascada: Lo que no se a ciencia cierta es cuando se han introducido los TÜ1 en cada modelo de toda la gama de BMW. Y si, supuestamente las mejoras del TÜ1 afecta tanto a 18d como a 20d.
Y la denominacion de TwinPower se utiliza en BMW de manera generica, bien podria ser un turbo twinscroll o un biturbo en cascada, o un biturbo clasico.
Bimmer, te cité para ver si podías comentar lo de los frenos y el M Driver. Gracias por la intervención.

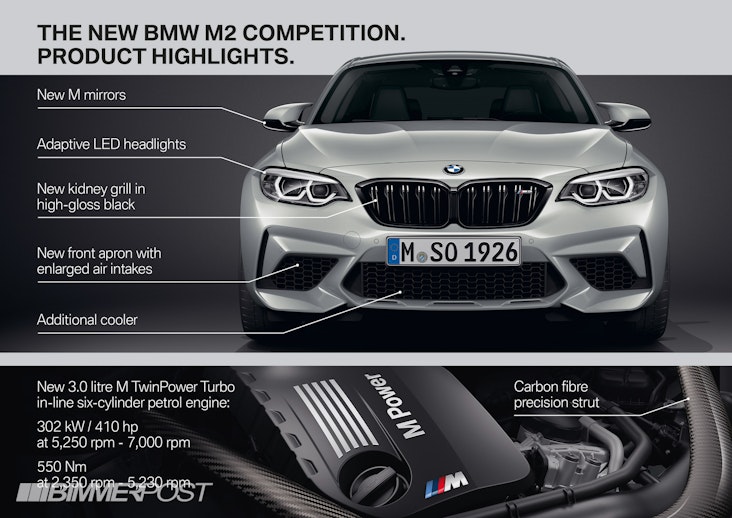

BMW M2 Competition 2018: 410 CV de poderío total POR: FERNANDO MORENO, Redactor Además de ser más potente que el M2 Coupé, el deportivo alemán disfruta de un chasis optimizado. Hemos hablado mucho de este coche y, al fin, lo podemos conocer en toda su grandeza. El BMW M2 Competition 2018 es un deportivo de raza, que, aunque parezca difícil, supera en muchos aspectos al M2 Coupé 'convencional'. No solo ofrece más potencia, sino que también posee otras cualidades optimizadas. Menuda joya... Comenzando por la parte mecánica, el coche monta el mismo propulsor que el M4 Coupé, un bloque de 3,0 litros y seis cilindros en línea, con dos turbocompresores. No entrega los 431 CV de su 'hermano' mayor, pero sí unos destacados 410 CV entre las 5.230 y las 7.000 rpm. Por su parte, el par máximo llega a 550 Nm entre las 2.350 y las 5.230 vueltas. Con la caja manual de seis velocidades, de serie, el BMW M2 Competition 2018 completa la aceleración de 0 a 100 km/h en 4,4 segundos, tiempo que se reduce en dos décimas si la transmisión es la automática de doble embrague DCT, con siete marchas. Sea cual sea el cambio elegido, la velocidad máxima está limitada a 250 km/h, aunque, con el paquete M Driver Package, este registro aumenta hasta los 280 (270 en el M2 Coupé). BMW M2 Competition 2018, con muchas mejoras El modelo germano estrena un sistema de escape variable, que modula el sonido, en función del modo de conducción seleccionado. En total, cuenta con cuatro salidas, agrupadas de dos en dos y acabadas en color negro, perfectamente integradas en el difusor trasero. También debemos mencionar los componentes de polímero reforzado con fibra de carbono (CFRP), en la carrocería, y los ejes elaborados en aluminio. Todo, tomado de los M3 y M4 Coupé. La dirección asistida electromecánica también ha sido ajustada en este vehículo de ensueño. En la parte posterior, el diferencial activo M puede variar el porcentaje de bloqueo automáticamente, según las necesidades. En las situaciones más extremas, tan solo tarda 150 milisegundos en bloquearse por completo. Asimismo, el control de estabilidad ha sido reprogramado y, como en otros modelos M, ofrece un modo M Dynamic que permite "cruzadas moderadas y controladas". Para controlar todo este caudal de fuerza, el equipo de frenos es más potente y está formado por discos delanteros de 400 milímetros de diámetro, con pinzas de seis pistones, y traseros de 380, con pinzas de cuatro. Por su parte, las dimensiones de los neumáticos varían en función del eje: 245/35 R19, delante, y 265/35 R19, detrás. BMW M2 Competition 2018, a la venta en verano En el habitáculo, la principal novedad reside en los botones M1 y M2 del volante, que permiten configurar distintos parámetros de la conducción y seleccionarlos fácilmente. En cuanto a los asientos opcionales M, de tipo baquet, vienen con reposacabezas integrados y un distintivo M2 iluminado a la altura de los hombros. Por último, el botón de arranque está pintado en color rojo. En cuanto al equipamiento, el BMW M2 Competition 2018 dispone de más ayudas electrónicas a la conducción, como el asistente de frenada de emergencia automática, con detección de peatones, o el sistema de alerta por cambio involuntario de carril. También el coche reconocerá las señales de límite de velocidad, aunque, probablemente, muchos conductores las ignorarán cuando estén al volante (mal hecho, claro está). En el exterior, los entusiastas no tendrán problemas en identificar el nuevo vehículo. Las inserciones oscurecidas y la insignia M Competition en el maletero son sus principales señas de identidad. El BMW M2 Competition 2018 se pondrá a la venta este verano y estamos seguros de que se convertirá en el modelo soñado por muchos. ¿A quién no le gustaría tenerlo en su garaje? BMW M2 Competition 2018 52 fotos
Miren en la story de Instagram.... BMW M acaba de subirla y al final se oye el ruido de escape.... madre mía, como suena a "cacharro enlatado" .... prefiero el sonido del actual 1000 veces https://www.instagram.com/bmwm/ Presentación el miércoles en Peking
En relación al sonido en esa story, lo más que probable que sea el modelo que no tenga montado el filtro de partículas.... así que la versión europea a ver como sonará

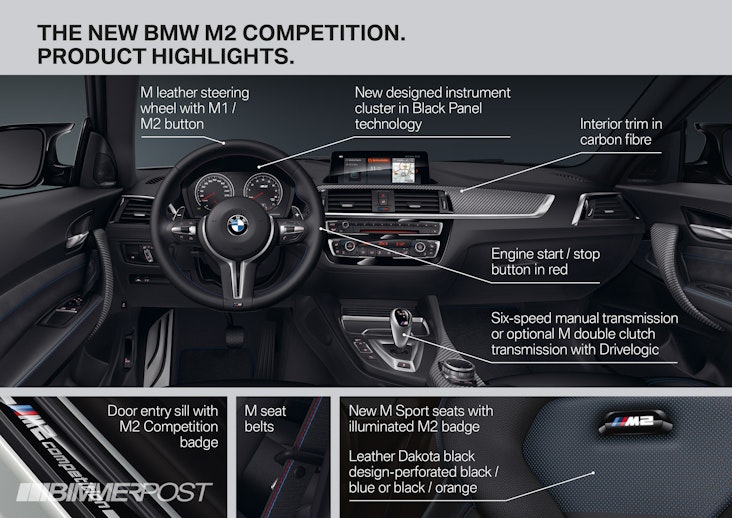

Ya veo como va el tema asientos, como el M4, de serie lleva los asientos de serie del M4 y como extra los asientos competition.

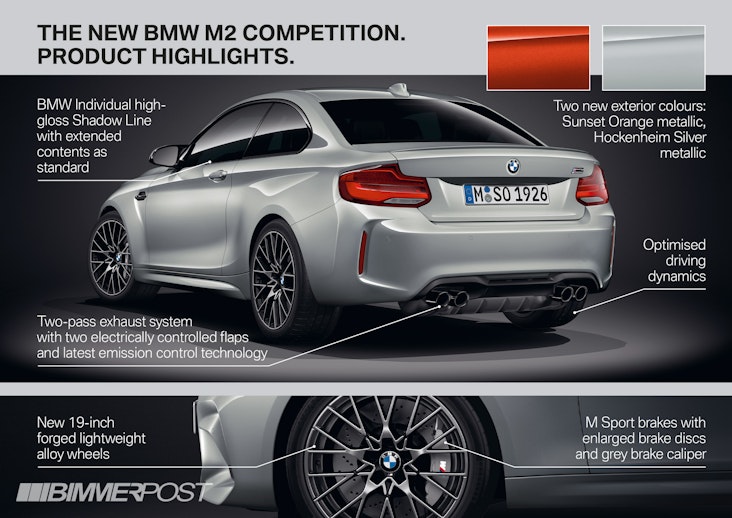

Engine / Transmission / Exhaust / Performance • S55 engine (from M3/M4) • 405 hp from 5,230 to 7,000 rpm • 406 lb-ft of torque from 2,350 to 5,230 rpm • 0-60 in 4.0 seconds (7-Speed DCT) • 0-60 in 4.2 seconds (6-speed manual) • Top speed of 174mph with optional M Drivers Package (limited to 155mph otherwise) - comes with BMW Driving Experience voucher for a track training course at the BMW Performance Center East or West. • Cooling system from BMW M4 Competition Package is used with some M2 specific adjustments • Additional oil sump • New carbon-fiber friction lining enhances shift feel of manual transmission • Rev matching with manual transmission • Enhanced steering system, Active M differential and DSC system • New exhaust system • M1 and M2 custom program buttons on steering wheel Suspension / Chassis • Carbon Fiber strut brace in engine compartment • Bulkhead strut from M4 Wheels / Tires • Larger front and rear brake disks with 6-piston front and 4-piston rear calipers (compared to 4 piston front and 2 piston rear of standard M2) • 400 mm diameter brake disks front / 380 mm diameter brake disks rear (compared to 380mm/370mm of standard M2) • New 19-inch forged wheels (front: 9J x 19, axle 10J x 19) Y- spoke design in a high-sheen finish, and in two color options: light high-sheen (bi-color), or with a black front surface. • 245/35 R19 front tires / 265/35 R19 rear tires Styling / Interior • Two new optional exterior paint colors : Hockenheim Silver (replaces Mineral Grey Metallic and is exclusive to the M2 Competition) and Sunset Orange Metallic • High-gloss shadow line kidney grilles and side gills • Quad black chrome plated tailpipes • Dark M Competition Badge on trunk • Bucket-style shaped seats with illuminated M2 logo on backrest • Seats available with blue or orange stitching • Alcantara on seat side bolsters • M2 Competition logo on sill plate • BMW M stripes on seat belts • M2 Competition logo lights up in instrument panel upon startup Availability / Pricing • Available in summer of 2018 • Pricing to be announced closer to Market launch Full Press Release: The First Ever 2019 BMW M2 Competition. Woodcliff Lake, NJ – ...Today, the BMW Group shows off its latest pride – the BMW M2 Competition. The 2019 BMW M2 Competition replaces the BMW M2 Coupe while retaining the compact dimensions, characteristic BMW M proportions and the BMW M TwinPower Turbo inline 6-cylinder engine, rear wheel drive and a standard manual transmission with an optional M DCT transmission that have made the M2 beloved by many enthusiasts. The exciting new addition to the BMW M portfolio provides a distinctive M design complemented by improved dynamics and track capabilities with a 0-60 sprint time of 4.0 seconds. The BMW M2 Competition will be available in summer of 2018. With pricing to be announced closer to Market launch. New engine with 405 Horsepower. The heart of the new BMW M2 Competition is its new engine, based on the power unit from the BMW M3 and BMW M4. The inline 6-cylinder engine with M TwinPower Turbo technology delivers 405 hp between 5,230 and 7,000 rpm. The engine’s peak torque of 406 lb-ft is on tap between 2,350 rpm and 5,230 rpm. The power unit boasts an insatiable appetite for revs and offers exceptionally linear power delivery across a broad rpm range. A dual exhaust system with electronic flap control provides the distinctive M sound, while the M TwinPower Turbo technology delivers outstanding efficiency. The first ever BMW M2 Competition completes the sprint from standstill to 60 mph, in as little as 4.0 seconds (with DCT and 4.2 seconds with the manual transmission). The top speed is electronically limited to 155 mph. The car can be combined with the M Driver’s Package to raise the top speed to 174 mph. The carefully designed oil supply system for the engine is taken directly from motorsport, while the cooling system from the BMW M4 with Competition Package is used with some M2 specific adjustments. The BMW M2 Competition’s track-ready variants of the oil supply and cooling systems have been tested by BMW’s many years of motor racing experience. Enlarged BMW kidney grille openings and a new front skirt with increased air flow are exterior indicators to the use of this enhanced cooling system. The kidney grilles are finished in high-gloss Shadow Line black paint as are the side gills on the front fenders. A quartet of black chrome plated tailpipes finish off the twin exhaust system. A dark M Competition Badge graces the rear end of the car. BMW M engineers have adjusted the driving dynamics of the BMW M2 Competition to take the new model’s increased performance into account. The striking CFRP high-precision strut from the BMW M3/M4 is immediately recognizable in the engine compartment. This improves front section rigidity and increases steering precision. The electromechanical power steering, the Active M Differential and the Dynamic Steering Control (DSC) system have all been enhanced. Selector switches to adjust settings. The BMW M2 Competition is the first BMW M2 to be equipped with selector switches in the center console that allow instant control of settings for the engine, steering and Drivelogic functions, if M DCT is available. The various configurations can be combined in whichever way the driver prefers and can be stored for easy access using the M1 and M2 buttons on the steering wheel. The standard range of equipment now includes the red start/stop button, Active Driving Assistant and Park Distance Control (PDC). Exciting new features. The new, standard M Sport seats are a real highlight in terms of both form and function. The bucket-style shape borrows heavily from motorsport and provides drivers with optimized support, while the headrests are integrated into the seat back rest. The backrest also features an illuminated M2 logo. The black leather upholstery boasts design perforations in the seat and backrest, available in either blue or orange. Two new optional paint colors are available on the BMW M2 Competition: Hockenheim Silver, which replaces Mineral Grey Metallic and is exclusive to the M2 Competition and Sunset Orange Metallic. Rapid response behavior thanks to M TwinPower Turbo technology. BMW M TwinPower Turbo technology consists of two rapid-response MonoScroll turbochargers, High Precision Injection, VALVETRONIC variable valve control and Double- VANOS variable camshaft timing. The valve and camshaft timing work in tandem for maximum variability of the control intake valve lift. Razor-sharp responses and optimal power delivery are the result. Spray on LDS (Lichtbogendrahtspritzen) coated cylinder walls lead to a significant reduction in weight over traditional cylinder inserts. A lightweight forged crankshaft helps the engine to rev to a redline of 7,600 rpm. Motorsport Experience. Maintaining consistent levels of oil supply is particularly important on the track, thanks to the increased performance of the BMW M2 Competition. This is where the extensive motor racing experience at BMW M GmbH has the chance to shine. For example, an additional oil sump cover helps limit the movement of lubricants when the car quickly changes direction. Under extreme longitudinal acceleration and deceleration, an oil extraction pump and a sophisticated oil return system situated close to the turbochargers help to maintain uninterrupted oil circulation. Sufficient oil is therefore supplied continuously to all engine components in all driving situations – whether on the road or the track. The BMW M2 Competition features a range of measures designed to deal with the increased cooling requirements, compared with the previous model. An enlarged BMW kidney grill and a new front skirt with modified air flow improve the flow for the front of the car. The car also makes use of the track-tested cooling system of the BMW M4 with the Competition Package, consisting of one central radiator, two side radiators and an additional engine oil cooler. Cars making use of the optional seven-speed M Double Clutch Transmission (M DCT) also feature a transmission oil cooler. Dual exhaust system with two electrically-controlled flaps. The BMW M2 Competition’s S55 engine exhales through a completely new exhaust system. The dual-branch design features a new muffler and the four tailpipes, finished in black chrome, identify the car immediately as a BMW M model. Two electrically-controlled flaps ensure that the BMW M2 Competition delivers the distinctive BMW M Sound, which the driver can adjust by selecting a driving mode with M Dynamic Performance Control via the selector switch in the center console. Choice of two transmission variants. The new BMW M2 Competition comes standard with a six-speed manual gearbox, which is notable for its compact design and light weight. The use of a new type of carbon-fiber friction lining enhances the manual shift feel. The BMW M2 is equipped with rev matching technology which blips the throttle on downshifts and lowers the engine’s revs on upshifts, making gear changes even smoother. This lends the car additional stability during hard driving on the track. The seven-speed M Double Clutch Transmission (M DCT with Drivelogic) can be ordered as an option. This system effectively combines two gearboxes, each with its own clutch, and enables either extremely fast gear changes with no interruption in the flow of power or ultra- smooth shifts. The driver can change gears either in automated or manual mode by using the gearshift lever on the center console or shift paddles on the M leather steering wheel. In both automatic and manual modes, Drivelogic provides the driver with a choice between three preconfigured driving programs: COMFORT, SPORT and SPORT+. In automatic mode, the driver can then adjust the speed of the gearshift, its intensity, and the automatic throttle blipping function on downshifts. Increased front-end rigidity for greater steering precision. The engine compartment contains the most striking component: the CFRP high-precision strut brace from the BMW M3/M4. This one-piece brace made from extremely light, yet high- strength, carbon fiber weighs in at just 3.3 lbs. Together with the bulkhead strut from the M4, it significantly increases front section rigidity and improves steering behavior and precision. The high-performance chassis utilizes the lightweight aluminum intensive front and rear axles from the BMW M3/M4. In order to ensure extremely precise wheel location, tight tolerance ball joints are used to transmit transverse forces. The control arms and wheel carriers of the new five-link rear axle are made from forged aluminum. A racing-derived rigid connection, dispensing with rubber bushings, is used to fix the lightweight steel grid-type rear axle sub frame to the body. This improves wheel location and tracking stability. BMW M engineers have adjusted the operation of the electromechanical power steering to further improve performance and increase front end rigidity. The integrated Servotronic function with M-specific characteristics controls the level of steering assistance electronically according to the car’s speed and to the Drivelogic settings made by the driver, allowing power steering assistance to be adjusted based on personal preference. Active M Differential and recalibrated DSC. The Dynamic Stability Control has been completely recalibrated for the BMW M2 Competition. Electronics exercise even more delicate control, providing improved traction in wet and slippery conditions, and ensuring that traction is not interrupted during drifts. Support is provided by the Active M Differential, an electronically controlled multi-plate limited-slip differential that takes traction and directional stability to a new level of precision and speed. The locking effect can vary between 0 and 100 percent, according to the driving situation, and reacts to the car’s steering angle, accelerator position, brake pressure, engine torque, wheel speed and yaw rate. The control unit uses this analysis of the driving situation to detect the threat of traction loss on one side of the car and calculates the required locking effect, which is engaged by an electric motor. The full locking power of over 1,800 lb-ft is available within 150 milliseconds. This allows the system to prevent a wheel from spinning in extreme conditions on slippery road surfaces or when the two rear wheels are experiencing significant differences in friction coefficient. In certain situations, the Active M Differential even works proactively. When pulling away on slippery surfaces, the lock is closed by a defined percentage even before a wheel can start to spin, to ensure that both wheels develop equal slip at the same time. The lock is also closed by the required percentage through enthusiastically driven corners, according to the levels of lateral acceleration and drive at work. This prevents the low-traction inside wheel from starting to turn too quickly. This permanent and infinitely variable differential control also increases agility, avoids understeer on the way into corners and improves directional stability under braking and load changes. M Dynamic Mode (MDM) is a sub-function of Dynamic Stability Control (DSC) that can be activated automatically by either selecting SPORT+ mode, or engaging manually via the DSC button. In certain situations – e.g. track driving – it allows a greater degree of wheel spin. The DSC mode stabilizing measures now intervene later, increasing the freedom available to drivers at the limit. The extra wheel slip enhances traction and therefore forward propulsion. More significant oversteer and understeer situations are possible, as are moderate, controlled drifts, but the Dynamic Stability Control active safety aids can still be relied on in critical situations. M Sport brakes developed from motorsport experience. The new high-performance M Sport brakes provide maximum brake performance and are a product of the extensive motorsport experience at BMW M GmbH. Compared to the outgoing M2’s M compound brakes, with blue metallic brake calipers (front 4-piston fixed caliper and 380 mm diameter disks and rear 2-piston fixed caliper with 370 mm diameter disks) the new M Sport brakes found in the M2 Competition have larger brake disks (front: 400 mm in diameter, rear: 380 mm in diameter) as well as larger brake calipers(front: 6-piston fixed and rear: 4-piston fixed), painted in a grey finish. These high-performance brakes provide excellent deceleration in all conditions and impress with their resistance to fade and heat. New forged wheels with two color options. The new 19-inch forged wheels are available (front axle: 9J x 19, rear axle 10J x 19) with the Y- spoke design in a high-sheen finish, and in two color options: light high-sheen (bi-color), or with a black front surface. The front 245/35 R19 tires meet the most demanding requirements in terms of lateral stability, directional stability, steering feel and steering precision. The rear 265/35 R19 tires deliver optimal traction, and the required lateral and directional stability. Interior Equipment When opening the door of the new BMW M2 Competition, drivers are greeted by the M2 Competition logo on the sill plate. They can then settle into the ergonomically and visually stunning M Sport seat. The bucket-style shape of the seat borrows heavily from motorsport and provides drivers with optimum support, while the headrests are integrated into the seat back rest. An illuminated M2 logo nestles in the backrest of the M Sport seat. The seat and the backrest boast black leather upholstery with design perforations, available in blue or orange. These touches of color are also reflected in the leather stitching on seats and armrests, while Alcantara leather is used to cover the sides of the side bolsters. The classic BMW M stripes have been woven into the M safety belts and the M-specific stitching can also be found on the steering wheel. A glance at the dashboard reveals the welcome layout for the instruments, which displays the M2 Competition logo for a few seconds at startup. A red start / stop button underlines the motorsport heritage of the car. Selector switches on the center console. The first ever BMW M2 Competition provides drivers with two selector switches in the center console that allow direct access to adjust various vehicle characteristics and settings, a feature familiar from other BMW M models. The switches can be used to directly access various settings for stability control, for example the three engine characteristics, or the steering modes. Drivers can also use the selector switches to adapt the settings they want for various areas and combine these as they please. They also adjust Dynamic Stability Control (DSC) – a short dab activates MDM mode, while holding the switch down longer switches DSC off. M1 and M2 buttons on the steering wheel. The M1 and M2 buttons on the steering wheel also provide direct access to the range of driving modes. Drivers can save their own personal configurations chosen from the settings for stability control, engine characteristics and steering - control over the personality of the BMW M2 is at their fingertips. The M1 and M2 steering wheel buttons are preprogramed with a Comfort and a Sport program as standard and drivers can return to these settings at any time. New equipment details. The evolution of the BMW M2 Coupe into the new BMW M2 Competition has been accompanied by some upgrades to the standard features as well. The sporty coupe now boasts Active Driving Assistant and Park Distance Control (PDC) which monitors the car’s surroundings and keeps an eye on what is in front of the car, as well as to the rear. The extensive range of equipment provided as standard marks the BMW M2 Competition as one of the most dynamic sports cars around. This includes the lightweight M Sport chassis, the six-speed manual gearbox with throttle blipping function and the Active M Differential on the rear axle, guaranteeing optimum traction and unbeatable directional stability. Electromechanical M Servotronic power steering and the M Dynamic Mode (MDM) for Dynamic Stability Control are also available allowing aspiring racing drivers to easily enjoy controlled drifts on the circuit. M Sports seats, the M leather steering wheel, an M footrest and knee pad on the center console and trim strips with surfacing in open pore carbon fiber all adorn the interior. Customers can add additional individual touches to their car with a hand-picked range of options. The list of options includes highlights such as the seven-speed M Double Clutch Transmission (M DCT) with Drivelogic, allowing gear changes with no interruption in the flow of power, or the M Driver’s Package, which raises the limit on the top speed of the new BMW M2 Competition to 174 mph and comes with a BMW Driving Experience voucher for a track training course at the BMW Performance Center East or West. BMW Personal CoPilot enhances safety, comfort and entertainment. New BMW M2 Competition customers can make use of numerous driver assistance systems and mobility services through BMW Personal CoPilot. The range of optional driver assistance systems includes the standard Active Driving Assistant, which comprises features such as Collision Warning and Pedestrian Warning with City Braking function, and Lane Departure Warning. Speed Limit Info flashes up traffic signs and the permitted top speed. The rear-view camera teams up with standard rear Park Distance Control to assist drivers with reverse parking and maneuvering. The standard Navigation Professional offers an ultra-sharp map display and the iDrive Touch Controller ensures the various functions are even easier to use.
Yo creo que como oficialmente todavia no se sabe al 100%,todos los medios van diciendo lo que les llega extraoficialmente..
Según esto, no habrá frenos opcionales. Vendrán de serie los discos más grandes con las pinzas de 6 pistones. También de serie los asientos del M4. Solo falta por confirmar lo del M Driver.
No me lo parece. Asientos de serie del M4 que ya son backet, los competition son simplemente mejores.
